1000kg/hr LDPE LLDPE Film Washing Recycling Line Plant
Project Introduction:
Our PE LDPE LLDPE Film Washing Recycling Line Plant is specially designed to processing Waste Plastic Soft Film Like agriclture film,stretch film,PP woven bags,etc. Every customer may have own requirement on design based on their demand,so RETECH make customzied plastic recycling solutions for each client.
With high efficiency performance on Grinder,we can acheive to make max capacity 2000kg/hr.
Equipped with high speed friction washer and hot floating washer group, it is a very ideal plastic film washing recycling solution for PP PE film bag.
The end film flake humidity will be 3%-5%.

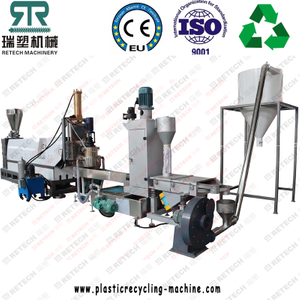

( It can be put into our compactor pelletiznig machine for making granules directly)
(Baled LDPE Agriculture Film Processing by our LDPE Film Washing Squeezing Plant)
(Layout drawing of 1000kg/h LDPE film/HDPE bottle washing recycling line to our India customer)
Equipment List:
No. | Name | Qty. |
1 | Metal Belt conveyor | 1 |
2 | De-baler | 1 |
3 | Belt conveyor | 1 |
4 | Roller screen | 1 |
5 | Belt conveyor | 1 |

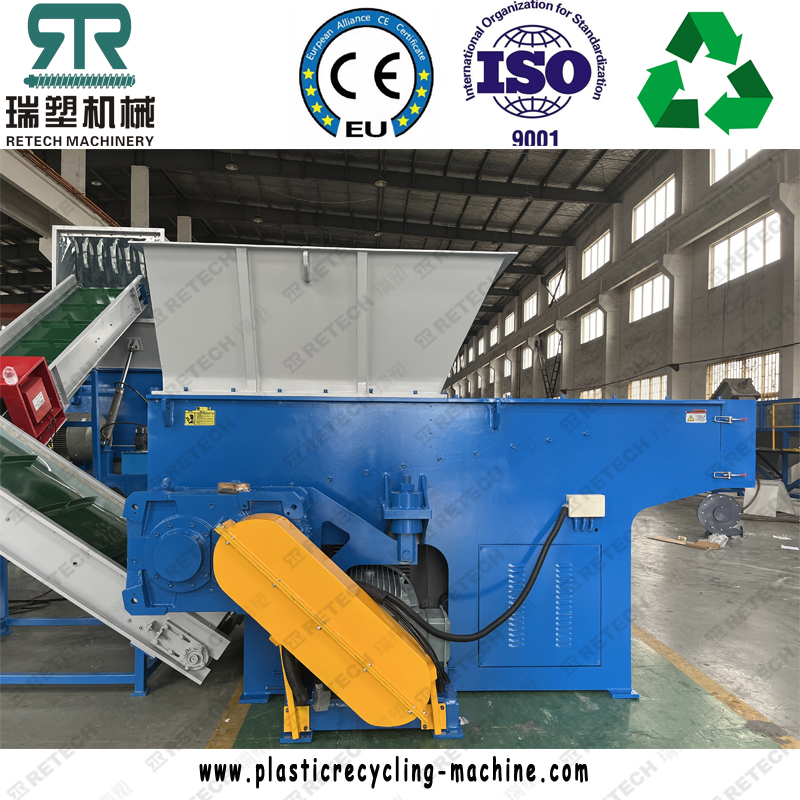

6 | Shredder | 1 |
7 | Belt conveyor with metal detector | 1 |
8 | Crusher | 2 |
9 | Screw loader | 1 |
10 | High speed friction machine | 1 |
11 | Screw loader | 1 |
12 | Hot floating washer | 1 |
13 | Screw loader | 1 |
14 | High speed dewatering machine | 1 |
15 | Floating washer | 1 |
16 | Screw loader | 1 |
17 | High speed dewatering machine | 1 |
18 | Floating washer | 1 |
19 | Screw loader | 1 |
20 | Spray washer | 1 |
21 | Screw loader | 1 |
22 | Centrifugal de-watering machine | 1 |
23 | Pipeline dryer | 2 |
24 | Zigzag separator | 2 |
25 | Silo | 1 |
26 | Electric cabinet | 1 |
( Key Units on our PP PE film washing line,like grinder,hot washing tank,floating washer,high speed friction washer,dewatering machine with centrifugal force)
Models of PP Woven Bag/PE Film Recycling Washing Plant:
| Model | Capacity(kg/hr) | Operator | Power | Water(t/hr) |
| RM300 | 300 | 1-2 | 125 | 3-4 |
| RM500 | 500 | 2-3 | 280 | 6-8 |
| RM1000 | 1000 | 2-3 | 420 | 10-12 |
| RM2000 | 2000 | 3-4 | 630 | 15-20 |
(Note: The models is not fixed, all design is acceptable by negotiatiom)
Contact us:
