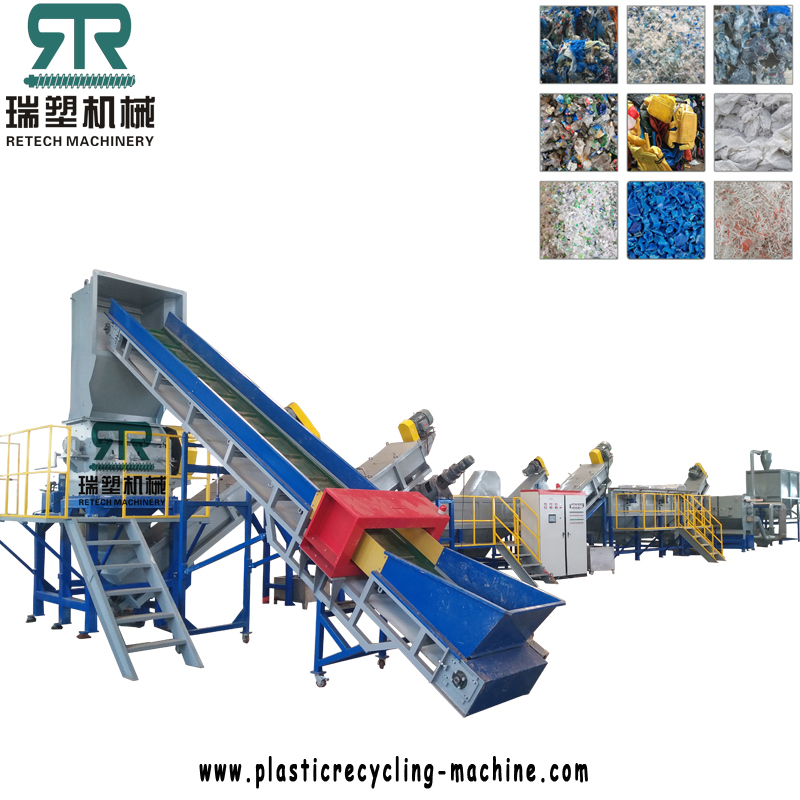

1000kg/hr PP jumbo bag/PP woven bag/cement bag washing machine recycling squeezing line
1000kg/hr PP jumbo bag/PP woven bag/cement bag washing machine recycling squeezing line introduction:
PP woven bag/jumbo bag washing recycling machine is widely used to processing the waste used post consumer plastic pp woven bags,pp jumbo bags,ldpe agriculture film,lldpe packaging film,etc.
The whole PP woven bag washing line is consist of 3 units, crushing/size reducing unit,constantly washing unit,drying unit.
With ideal design and correct positions putting,we can get fully clean the PP bag into PP dry flakes,the final PP material will be clean and dry.
PP jumbo bag/PP woven bag/cement bag washing machine recycling squeezing line models:
Model | RT300 | RT500 | RT1000 |
Capacity | 300kg/h | 500kg/h | 1000kg/h |
Working Power | 90kw/h | 225kw/h | 300kw/h |
Labor needed | 2 | 3 | 3 |
Dimension | 24*4*5m | 32*4*6m | 42*4*6m |
1000kg/hr PP jumbo bag/PP woven bag/cement bag washing machine recycling squeezing line Details:
Size reduction/Crusher/Grinder:
PP big bag/woven bag/jumbo bag has a lot of uncertained dirts inside of bags, such as soil,oil,sand,chemicals,seeds,etc.So in order to clean and wash the PP woven bag, we need to cut it firstly to make it small and easy to wash.
Our PP bag specialized crusher is a expert that used to cut the PP big bag. The rotation blades in a well setting direction and angle will get the PP woven bag cutted in a very fast time.The rotor with balance dynamic and tempering treatment will ensure the long lifetime of crusher. It is enough strong to cut no matter woven bag or jumbo bag with belt.
Crushing with water is much better for PP woven bag/big bag.It will improving the capacity of cutting and reduce the dust pollution of air.
After cutting,the size of PP flakes will be well controlled in size between 40-60mm.
Friction washer:
In some of PP bags,there is a lot of small dirts inside or stickers on the surface of PP plastic,so we usually adopt to use a friction washer after crusher and before floating washing machine. It is in medium speed or high speed 500rpm-1200rpm optional.
Processing by friction washer,the dirt will be separated and discharge,the PP flake will sent to next to further wash.
Floating Sinking Washing Tank:
Our RT-SERIES floating sinking washing separation machine is working with hot washing and cold water washing units. Hot washing tank will wash and remove the oil and other stubborn oil dirts,it is heating by steam or electricity. The dirt fall down in bottom of washer,the swimming PP flakes get compeletely wash and sent to next by rolling pushers.
PP flakes drying units:
On this point of drying, we have 2 options for PP flakes.
1st drying method is working with dehydrator machine which is working with high speed centrifugal force,it is the traditional drying way.
2nd drying method is working with squeezing dryer,it is by strong power of squeeze and become semi-plasticising shape. It is more dry and tight of final material.
Relating Machines:
PP woven bag fabric fiber pelletizing machine:
After PP woven bag clean and wash by our washing machine, it is usually to next processing by our pelletizing machine. It will make the flakes into granules.
Model of PP granulating pelletizing machine recycling line:
Model | Screw diameter | L/D | Power | Capacity KG/H |
RCSJ100/120 | 100mm | 33:1 | 0.42kw/kg | 200kg/h |
RCSJ130/130 | 130mm | 33:1 | 0.4kw/kg | 350kg/h |
RCSJ160/180 | 160mm | 30:1 | 0.38kw/kg | 550kg/h |
RCSJ180/200 | 180mm | 28:1 | 0.36kw/kg | 800kg/h |
About us:
RETECH Machinery is a professional manufacturer focusing on plastic recycling machines with more than 15 years experience.
We mainly supply:
Plastic Washing Machines
Plastic Pelletizing Machines
