500kg/h Plastic LDPE Agriculture Greenhouse film LLDPE Packaging Film Washing Recycling Line with Film-Paper Tag Separation System
Quanlity Assurance of PE film recyclign line:
After processing by our high efficiency film washing units, the final plastic material will be very clean and dry.
The final moisture will be strictly controlled between 3%-5%.
500kg/h LDPE film LLDPE Packaging Film Washing Recycling Line Application:
Material | LDPE,LLDPE agriculture film/packaging film |
Shape | Film,Woven Bag |
Type | Baled,Loose,Scrap,Roll |
Capacity | 300kg/h,500kg/h,800kg/h,1000kg/h,1500kg/h,2000kg/h |
Working Flow of PP PE film washing plant:
Film Crushing Unit:
RT Series shredder/crusher machine will cut the waste baled or long belt shape film, the film flakes after cutting will be in size of 40-60mm. It is small and easy to wash for next following washing units.
Based on your material,we have different kind of crusher/shredder machines for optional.
Washing Unit:
By friction washer in front of floating sinking washing tank,it is to remove the mostly dirt of sand,soil,etc which can maximum reduce the dirt come into floating tank.
The deep film washing tank with moving rollers can completely wash the film. The dirt like soil or small metal will fall down,light LDPE film will be float and send to next by film pusher.
Sometimes,the LDPE/LLDPE may have sticker with some paper/label,price tag. It needs a force washing separation device. It is called paper/plastic separation removing system.
PP PE film Drying Unit:
Squeezing machine with heating will remove water/moisture very easily.
The final granules shape film can be ensure 3%-5% moisture.
It can be put into our pelletizing machine directly to make granules.
Basic Data of “RT” Series LDPE LLDPE film washing line:
| Model | Power | Water consumption | Capacity(kg/h) |
| RSW 300 | 82KW/H | 4-5t/h | 300kg/h |
| RSW 500 | 155KW/H | 6-8t/h | 500kg/h |
| RSW 1000 | 230KW/H | 10-12t/h | 1000kg/h |
Main units of PP PE film washing line:
LDPE/LLDPE Film Crusher/Grinder:
Name | Technical Parameters |
Motor Power | 37kw,55kw,90kw,132kw |
Rotor Size | 560*800mm,620*1000mm,760*1400mm |
Moving Blades | 10PCS,14PCS |
Fixed Blades | 4PCS |
Material of Blades | D2,SKD-11 |
Screen Hole | 80mm,100mm,120mm |
Capacity | 300kg/h,500kg/h,1000kg/h |
Function | To cut the big plastic into small flakes. |
PE Film Friction Washing Machine:
Name | Technical Parameters |
Motor Power | 5.5kw,11kw,15kw,22kw |
Screw Diameter | 380mm,420mm,500mm |
Thickness Blades | 5mm |
Length | 3200mm,3800mm,4500mm |
Material | Stainless steel 304 |
Screen Hole | 3mm |
Capacity | 300kg/h,500kg/h,1000kg/h |
Function | To remove the soil and sand/stone,working with paper separation system will strongly remove label paper. |
Film Sinking-Floating Washing Separation Machine
Name | Technical Parameters |
Motor Power | 2.2kw*3 |
Length | 4500mm,6000mm,8000mm |
Width | 1320mm,1600mm,2000mm |
Material | Stainless steel 304 |
Capacity | 300kg/h,500kg/h,1000kg/h |
Function | To separate dirt and to clean film,working with chain conveyor will saving water consumption. |
Film Squeezing&Centrifuge Drying Machine
Name | Technical Parameters |
Motor Power | 90kw,110kw,132kw,160kw |
Gearbox | 315,330 |
Screw Diameter | 300mm,320mm,350mm |
Material | 38CrMoA1A |
Capacity | 300kg/h,500kg/h,800kg/h |
Function | To dry and compact the LDPE film |
FEATURES of LDPE/LLDPE film Washing Line:
1. Latest structure of crusher, ensure maximum to get 3000kg/h for LDPE film.
2. High efficient label/paper removing system can completely separate paper tag and plastic film.
3. Multiple-Channels washing tank design,best washing effect.
4. Squeezer application on drying, ensure moisture 3%.
5. High output,max to 2000kg/h-3000kg/h
For mostly of recyclers,they will go on to making granules and blowing the film as a recycling chain.
RETECH also supply plastic film pelletizing granulation machines,just you need tell us what is the capacity you need to get,then we will send a offer quickly.

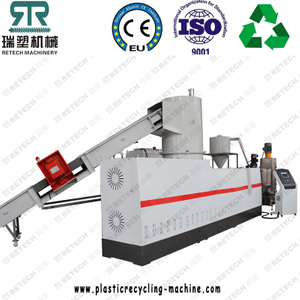

PP PE film bag compactor double stage pelletizing line:
