500kg/hr PE PP LDPE LLDPE Agriculturte Film Wrapping Packaging Film Squeezer
LDPE LLDPE Agriculturte Film Wrapping Packaging Film Squeezer Description:
This Film Squeezing Machine is used for drying those washed film, woven bags.etc. and make it like granules. After that the granules can put into the extruder directly.
It is a full automatic Squeezing & Compacting & Pelletizing Machine to the film and woven bags, with the screw squeezing and electrical heating, make the materials have high degree of drying and full plasticizing, low power consumption, high output. The final moisture is only 3-5%. The capacity would be customized according to the requests of clients.
Film Squeezer Application:
This plastic film squeezer is used for squeeze and re-pelletizing PP/PE film, woven bag, ton bags, nylon etc. it's equipped with advanced screw extrusion system, squeezing efficiency could reach 95%. Also can work on the accordance with washing and pelletizing line with stable capacity and whole process automation.
1. LDPE waste film recycling and washing line
2. PE agriculture using films crushing and washing line
3. Waste PE film recycling line
4. Ethylene ground film washing, drying and regranulating line
5. Waste film recycling and washing line
6. PP woven bag recycling and washing line
Film Squeezer Technical Parameters:
| 1 | Motor power | 75kw | 90kw | 132kw | 160kw |
| 2 | Screw diameter | 250mm | 300mm | 320mm | 350mm |
| 3 | Cutter | 2.2kw | 3kw | 5.5kw | 7.5kw |
| 4 | Material of screw | 38CrMoA1A | 38CrMoA1A | 38CrMoA1A | 38CrMoA1A |
| 5 | Heating power | 9KW | 9KW | 9KW | 9KW |
| 6 | Humidity | 3% | 3% | 3% | 3% |
| 7 | Capacity | 300kg/h | 400kg/h | 600kg/h | 800kg/h |
PP PE Film Squeezer Technical Specification:
Technical parameters: (1) Motor power:90kw,110kw,132kw,160kw (2) Speed of screw: 10-90r/m (3) Type of gearbox: 315 type,330type,375type (4) Material of Screw: 38CrMoA1A, nitride treatment, hardness: HV740, depth of nitride layer: 0.4~0.6mm (5) Material of Barrel:38CrMoA1A, nitride treatment, hardness: HV≥980, depth of nitride layer: 0.6~0.7mm (6) Screw diameter:300mm,320mm,380mm (7) L/D: 6:1 (8) Cutting blades power:3.7kw (9) Blowing power:3.7kw (10) Way of water drain: at the bottom of machine (11) Volume of hopper:0.5 cube meter (12)Electrics:Schneider Contactor, Pioneer Inverter, Automatic Control (13)Capacity:300-800kg/h(PE PP film) |

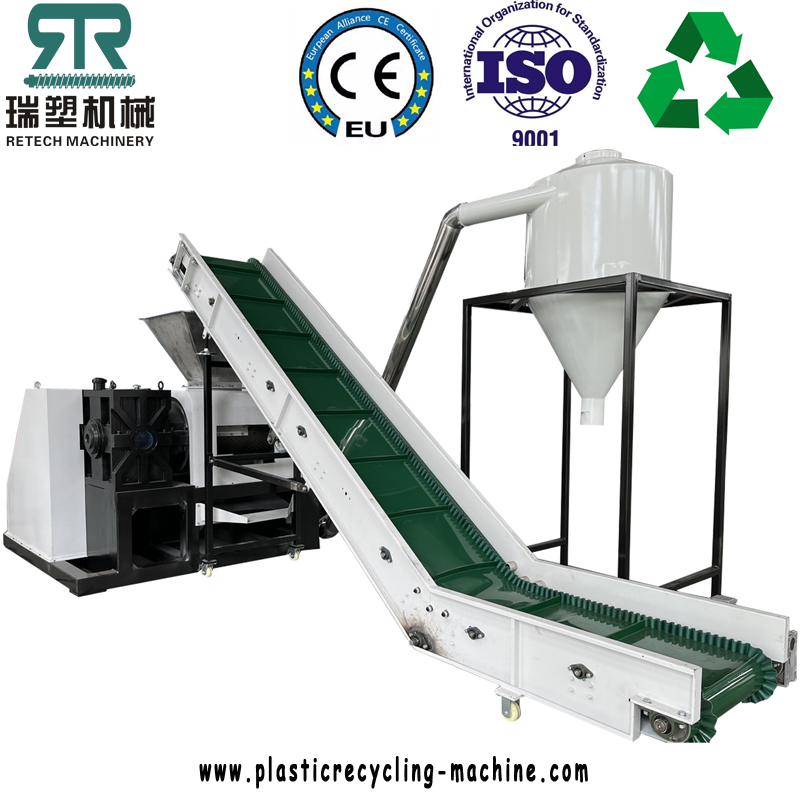

Photos for PP PE film squeezing machine
Squeezer Machine Mould&Cutter:
|

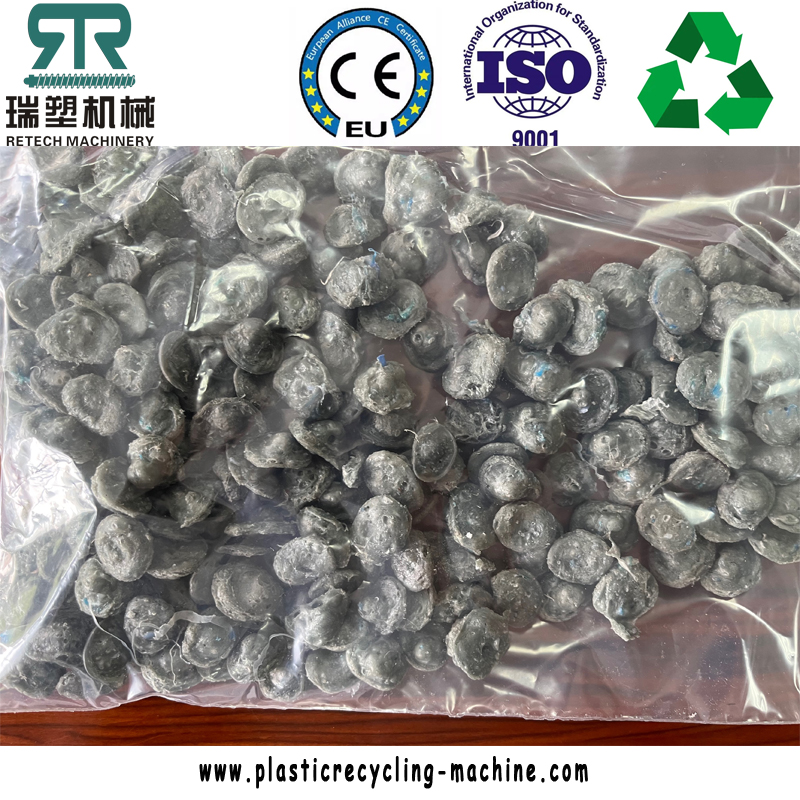

Photos for films Moisture less than 3%:
LLDPE Pellets LDPE Pellets |
Feature of Film Squeezing Dryer Recycling Machinery Plastic Squeeze Machine:
1. Suitable for all kinds PP, PE plastic films bags washed materials
2. This Waste Plastic Film Squeezing Dryer is especially for plastic film, plastic bags, woven bags,
3. Adopt latest squeezing and heating system, raw materials heated in to half-plasticized, then cut into small pieces for better granulation
4. Compared with ordinary heating system, this machine sharply save electricity, final moisture less than 3%
5. Replace the 1 dewatering machine, 1 hot drying systerm in the washing recycling machine line, and 1 agglomerator in granulator recycling machine line.
