BOPP HDPE LDPE LLDPE Film Bags Raffia Offcut Compactor Single Stage Water Ring Pelletizing Machine
Production Description:
BOPP HDPE LDPE LLDPE Film Bags Raffia Offcut Compactor Single Stage Water Ring Pelletizing Machine is mainly used for processing with the waste plastic materials such as:LDPE agriculture film,HDPE film shopping bags,PP woven bags,etc.
The output capacity of our PP PE granulating machine is ranges from 200kg/h to 1000kg/h.
Working&Processing of plastic pelletizing machine:
Belt conveyor — Compactor feeder — First Extruder — Hydraulic screen exchanger — Second Extruder — Hydraulic screen exchanger — Die face cutting system — Drying system — Silo — Electric cabinet
Models:
RC85-100, RC100-120, RC130-150, RC160-180, RC180-200.
Model | Screw Diameter | Power Consumption | Labor needed | Capacity(PE) |
RC85-100 | 85/100mm | 90kw/h | 1-2 | 200-260KG/H |
RC100-120 | 100/120mm | 135kw/h | 1-2 | 250-320KG/H |
RC130-150 | 130/150mm | 190kw/h | 2-3 | 450-550KG/H |
RC160-180 | 160/180mm | 270kw/h | 2-3 | 600-750KG/H |
RC180-200 | 180/200mm | 420kw/h | 3-4 | 800-1000KG/H |

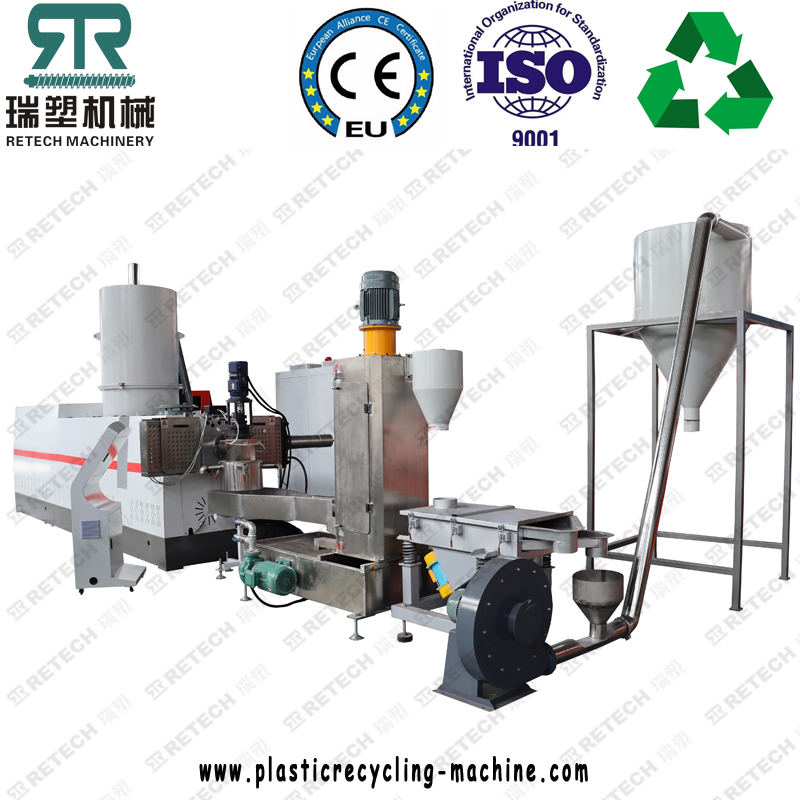

Pictures of our die face cut pelletizing line:(export to Japan)
