Plastic: | |
---|---|
Production Capacity: | |
Availability: | |
Quantity: | |

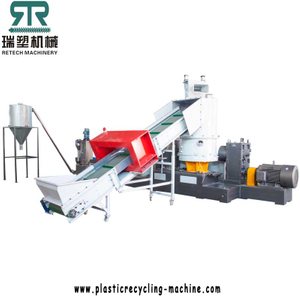

Plastic Double Stage PE PP Film Compactor Granulating Line
Application of LDPE Film Compactor Pelletizing Line:
Material: PE, LDPE, LLDPE,HDPE,BOPP film,PP Fabric,Silk,Flakes (≤0.5mm), Bags, etc.
Note:RCSJ series compactor granulator can be pull strip cutting method, or water ring cutting method for optional.
Parameters(RS Series Single Stage Plastic Compactor-Pelletizer):
Model (Double-stage) | RCSJ-85 | RCSJ-100 | RCSJ-130 | RCSJ-160 | RCSJ-180 |
Screw Diameter (mm) | 85 | 100 | 130 | 160 | 180 |
L/D | 25-42 | 25-42 | 25-33 | 25-33 | 25-33 |
Capacity(kg/h) | 150-200 | 300-350 | 500k | 600-700kg/h | 800-1000kg/h |
No. | Name | Quantity |
1 | Belt conveyor with metal detector | 1 |
2 | Compactor | 1 |
3 | RCSJ140/33 main extruder | 1 |
4 | RCSJ150/12 baby extruder | 1 |
5 | Hydrualic screen exchanger | 2 |
6 | Die face cutting system | 1 |
7 | Water flume | 1 |
8 | Dewatering machine | 1 |
9 | Vibrating screen | 1 |
10 | Blower conveying system | 1 |
11 | Storage hopper | 1 |
12 | Electric panel | 1 |
Advantages of LDPE Film Compactor Pelletizing Line:
1. Double Stage PE PP Film Compactor Granulating Line. It has pull strip cutting, and water ring cutting method(include vertical water ring cutting and horizontal water ring cutting) for option.
2. This PP PE film pelletising machine with high efficiency, working stable, large capacity etc.
3. World famous brand components applied on the production line- world famous elements brand.
4. The whole PP PE film recycling production line with CE certification, ISO9001 certification.
Our Service:
RETECH could provide all the machines for the complete production according to customer's requirements.
We supply complete service for factory layout and other information to help customer to build the factory.
Our company has good service for machine installation and training, until the customers can run the machines and make stably production.
Except one year quality guarantee, we could provide after-sell service for all the life.
For long-term cooperation, we always have good quality, good price and good service to customer.
