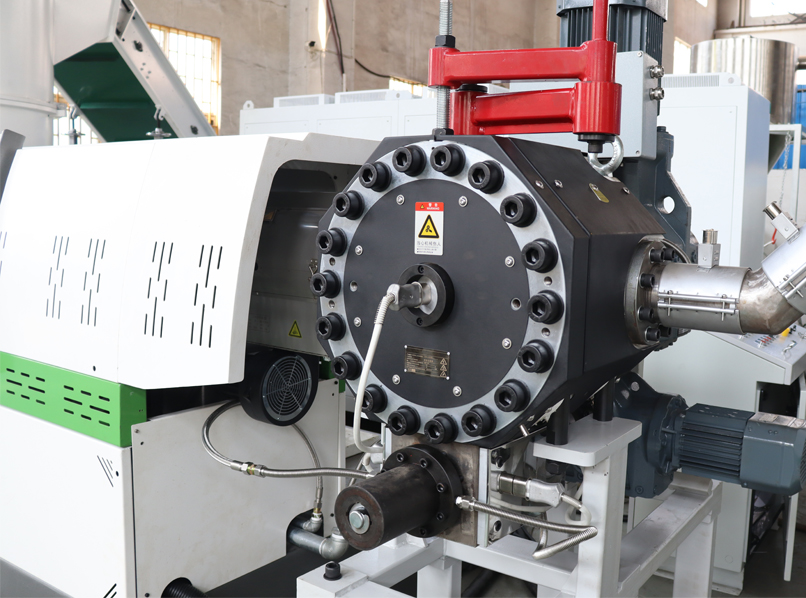

RCSJ Series PP PE film recycling pelletizing machine
RETECH
8477800000
| Plastic: | |
|---|---|
| Production Capacity: | |
| Quantity: | |
Double Stage Plastic HDPE LDPE LLDPE Film Recycling Pelletizing Line
Plastic granulator from crushing, melting,granulation is working at one time. The extruder can choose the vent hole or no vent hole according to the characteristics of the material. The granulation method will adopts the strip cutting, the single board double station change screen device, no stop. The filter area is large and self-cleaning filter is optional. Plastic granulator is suitable for composite film,CPP film, PP non-woven fabric and so on.
Our plastic PP PE film granulation equipment saves labor and improves efficiency.Plastic granulator has good adaptability, and almost all kinds of conventional plastic granulation can be adapted.The energy low consumption ratio of our equipment, the quality of the output advantage are obviously.
1. Low consumption: the total power consumption has reduced 15%.
2. High output: the capacity of our plastic film pelletizing line has incresed 20%.
3. Labor saving: only 1 person to work.
4. Safty: machine only working inside with well protection.
5. Automatically: working with PLC online controller. All parameters well setted by screen.
| Model | Main Power(kw) | Screw dia | L/D | Consumption(kw/kg) | Output(kg/h) |
| RCDJ85 | 55 | 85 | 33:1 | 0.43 | 200 |
| RCDJ100 | 90 | 100 | 33:1 | 0.4 | 320 |
| RCDJ130 | 132 | 130 | 33:1 | 0.38 | 500 |
| RCDJ160 | 185 | 160 | 30:1 | 0.36 | 750 |
| RCDJ180 | 250 | 180 | 28:1 | 0.33 | 1000 |
Double Stage Plastic HDPE LDPE LLDPE Film Recycling Pelletizing Line
Plastic granulator from crushing, melting,granulation is working at one time. The extruder can choose the vent hole or no vent hole according to the characteristics of the material. The granulation method will adopts the strip cutting, the single board double station change screen device, no stop. The filter area is large and self-cleaning filter is optional. Plastic granulator is suitable for composite film,CPP film, PP non-woven fabric and so on.
Our plastic PP PE film granulation equipment saves labor and improves efficiency.Plastic granulator has good adaptability, and almost all kinds of conventional plastic granulation can be adapted.The energy low consumption ratio of our equipment, the quality of the output advantage are obviously.
1. Low consumption: the total power consumption has reduced 15%.
2. High output: the capacity of our plastic film pelletizing line has incresed 20%.
3. Labor saving: only 1 person to work.
4. Safty: machine only working inside with well protection.
5. Automatically: working with PLC online controller. All parameters well setted by screen.
| Model | Main Power(kw) | Screw dia | L/D | Consumption(kw/kg) | Output(kg/h) |
| RCDJ85 | 55 | 85 | 33:1 | 0.43 | 200 |
| RCDJ100 | 90 | 100 | 33:1 | 0.4 | 320 |
| RCDJ130 | 132 | 130 | 33:1 | 0.38 | 500 |
| RCDJ160 | 185 | 160 | 30:1 | 0.36 | 750 |
| RCDJ180 | 250 | 180 | 28:1 | 0.33 | 1000 |
