RT series PET Bottle washing machine
RETECH
8477201000
| Plastic: | |
|---|---|
| Production Capacity: | |
| Quantity: | |

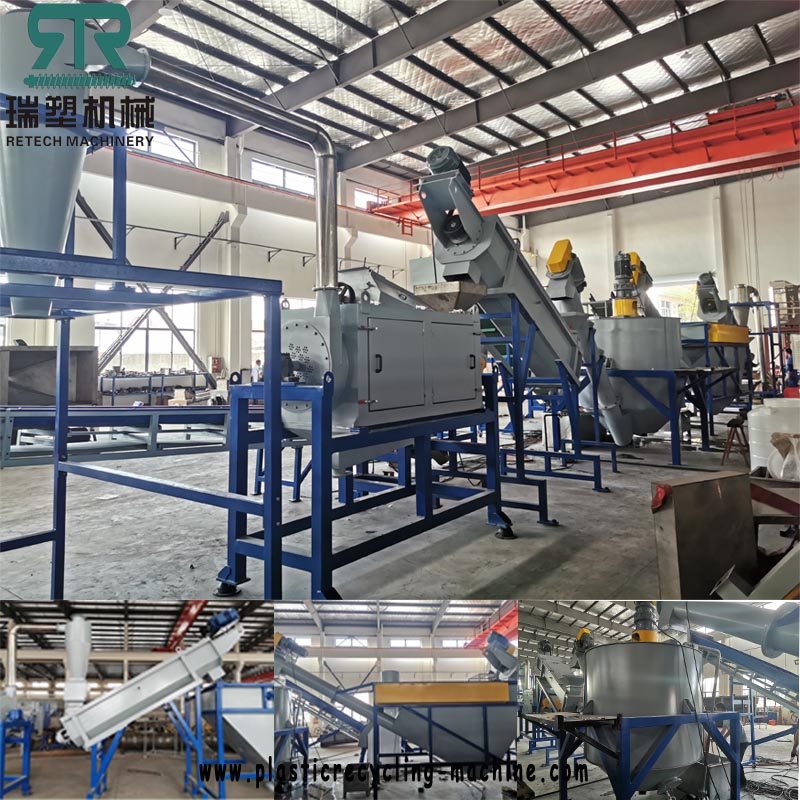

Food Grade Plastic PET Bottle Recycling Washing Line
Working Flow:
Belt conveyor → Bale opener machine → Belt conveyor → Pre-washer (trommel) →Belt conveyor → Mechanical label remover → Manual separating table → Metal detector →Belt conveyor → Crusher *2→ Screw conveyor*2 → Floating washer →Screw conveyor → Hot washer chamber *2 →Screw conveyor*2 → High speed friction machine → Screw conveyor → Floating washer → Screw conveyor →Floating washer → Screw conveyor → Horizontal dewatering machine → Drying pipe system → Zig zag air classification system → Storage hopper → Control cabinet
Models of PET Bottle Washing Line:
Model | CAPACITY(kg/h) | POWER CONSUMPTION(kw) | WATER CONSUMPTION(ton/h) | MANPOWER | HUMIDITY CONTENT |
RS-500 | 500kg/hour | 180kw | 3-4ton/h | 4 | ≤1% |
RS-1000 | 1000kg/hour | 210kw | 6-7ton/h | 6 | ≤1% |
RS-2000 | 2000kg/hour | 320kw | 8ton/h | 6 | ≤1% |
RS-3000 | 3000kg/hour | 405kw | 10ton/h | 8 | ≤1% |
Final Products (PET Flakes) Quality Reference:
NO. | DESCRIPTION | AA level (ppm) | A level (ppm) |
1 | PVC content | ≤25 | ≤100 |
2 | PE/PP color flake/metal and other impurity content | ≤75 | ≤100 |
3 | Total impurity | ≤100 | ≤150 |
Advantages Of PET Bottle Recycling Washing Line:
1.Final products has good quality. When process PET bottle, final products humidity below 1%, impurities100ppm,PVC label content 100ppm . The whole line capacity between 300kg/h-2000kg/hour .
2.Parts which contact material use SUS304 stainless steel, thickness more than 3mm, ensure long service lift time.
3.World famous brand components applied on the production line- e.g. Siemens contactor, Omron temperature, FUJI invertor, Siemens PLC controller, etc.
4.The whole production line with CE certification, ISO9001 certification.
Our Service:
· RETECH will provide all the machines for the complete production according to customer's requirements.
· RETECH will provide complete service for factory layout and other information to help customer to build the factory.
· RETECH will provide good service for machine installation and training, until the customers can run the machines and make stably production.
· Except one year quality guarantee, we will provide after-sell service for all the life.
· For long-term cooperation, we always provide good quality, good price and good service to customer.
About us:
RETECH is located in Zhangjiagang city (100 kilometers from Shanghai), The target of RETECH is to offer the best quality plastic recycling machines to the customers from all over the world. With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture specific machines according to customer's requirements. Our products serviced hundreds of plastic companies over 80 nations and regions worldwide.
Excellent quality and professional service is the promise made by RETECH to new and old friends. We are looking forward to establishing the good cooperation relationship with you on the basis of mutual benefits
