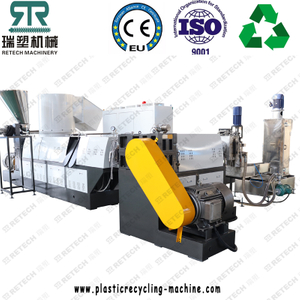

HDPE LDPE LLDPE Film Compactor Pelletizing Recycling Line
This type of compactor pelletizing machine is apply for HDPE film, LDPE film, LLDPE foil, BOPP film, PP Woven bag, non woven fabric, yarn, tape, silk, PP raffia, fiber recycling granulator machine……
Working with vacuum degassing, filtering automatic, die face cutting, vibrating dewatering, pressure alarm equipment.
No. | Name | Quantity |
1 | Belt conveyor with metal detector | 1 |
2 | Compactor | 1 |
3 | RCDJ130/33 main extruder | 1 |
4 | Hydrualic screen exchanger | 1 |
5 | Die face cutting system | 1 |
6 | Water flume | 1 |
7 | Dewatering machine | 1 |
8 | Vibrating screen | 1 |
9 | Blower conveying system | 1 |
10 | Storage hopper | 1 |
11 | Electric panel | 1 |
Models of HDPE LDPE LLDPE Film Compactor Pelletizing Recycling Line:
Model | Data of compactor | Data of single screw extruder | Throughput rate(Kg/hr) | |||
Efficiency volume (Liter) | Motor power (KW) | Diameter of screw(mm) | L/D | Motor power(KW) | ||
RCDJ85 | 300 | 37 | 85 | 33 | 55 | 160-220 |
RCDJ100 | 500 | 55 | 100 | 33 | 90 | 280-360 |
RCDJ130 | 800 | 75 | 130 | 33 | 132 | 450-550 |
RCDJ160 | 1000 | 110 | 160 | 30 | 185 | 650-750 |
RCDJ180 | 1200 | 132 | 180 | 28 | 250 | 800-1000 |
