HDPE PP Bottle Washing Recycling Plant
Working Flow:
Belt conveyor → Shredder machine →Belt conveyor →Hot washer tank → Screw conveyor → Crusher machine → Screw conveyor → High speed friction washer → Screw conveyor → Floating washer tank → Screw conveyor → Horizontal dewatering machine → Drying pipe system → Zig Zag air classification system →Storage hopper → Control cabinet
Models of HDPE Bottle Washing Machine:
MODEL | CAPACITY | POWER CONSUMPTION | WATER CONSUMPTION(ton/h) | MANPOWER | HUMIDITY CONTENT |
RS-300 | 300kg/hour | 178kw | 3ton/h | 3 | ≤1% |
RS-500 | 500kg/hour | 200kw | 4-5ton/h | 3 | ≤1% |
RS-1000 | 1000kg/hour | 295kw | 6ton/h | 4 | ≤1% |
RS-2000 | 2000kg/hour | 415kw | 7ton/h | 4 | ≤1% |

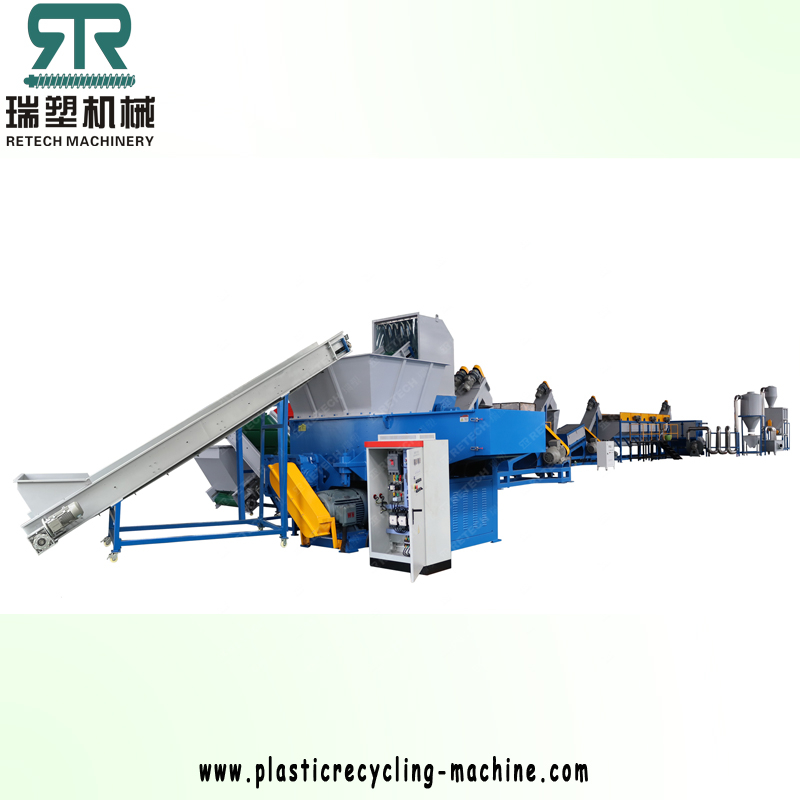

Pictures of HDPE Bottle Washing Plant:
HDPE/PP Flakes After Process:
1. Final products has good quality. When process HDPE PP bottles, final products humidity below 1%.
2. The PP HDPE washing machine with high efficiency, working stable, large capacity etc.
3. Parts which contact material use SUS304, thickness more than 3mm, ensure long service life time.
4. World famous brand components applied on the production line- SKF bearing, Siemens contactor, Japan Omron temperature controller, ABB invertor, Siemens PLC control.
5. The whole production line with CE certification, ISO9001 certification .
Our Service:
· RETECH will provide all the machines for the complete production according to customer's requirements.
· RETECH will provide complete service for factory layout and other information to help customer to build the factory.
· RETECH will provide good service for machine installation and training, until the customers can run the machines and make stably production.
· Except one year quality guarantee, we will provide after-sell service for all the life.
· For long-term cooperation, we always provide good quality, good price and good service to customer.
