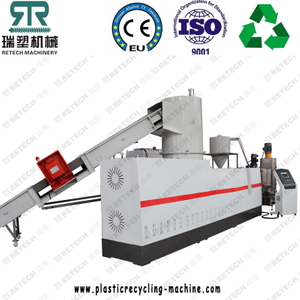

LDPE LLDPE BOPP Foil Film Pelletizing Recycling Line
1. Description:
Our RCDJ Series plastic LDPE LLDPE BOPP foil film pelletizing recycling line is working to process the soft plastics such as different kinds of soft plastic PE/LDPE/LLDPE/HDPE/BOPP films,PP woven non-woven/fabric/raffia/nets, PS/EPS/XPS foam,etc.
The whole plastic pelletizing system is design by RETECH plastic recycling solution team. This system combines latest technology with high automatically operation.
2. Applications:
PP woven bag recycling machine
PP non woven fabric pelletizer
PP raffia yarn silk granulator
BOPP film pelletizing machine
CPP OPP POF film pelletizing line
PE/PA composite film,complex film recycling pelletizing line
LDPE film recycling line
LLDPE film pelletizing line
HDPE film recycling granulation line
EPE/EPS/XPS foam granulating line
3. Model:
Model | Screw Diameter | L/D | PE(Output) | PP(Output) |
RCDJ85/100 | 85mm/100mm | 33:1 | 160-220kg/h | 120-200kg/h |
RCDJ100/120 | 100mm/120mm | 33:1 | 260-380kg/h | 220-280kg/h |
RCDJ130/150 | 130mm/150mm | 33:1 | 450-550kg/h | 380-450kg/h |
RCDJ160/180 | 160mm/180mm | 30:1 | 650-800kg/h | 500-600kg/h |
RCDJ180/200 | 180mm/200mm | 28:1 | 800-1000kg/h | 600-800kg/h |
4. Important Units on Plastic Recycling Pelletizing Machine:
1. Belt conveyor
The belt conveyor is to sending the PE material into compactor machine. The belt is made of PVC in 4mm thickness. On top of belt,we usually put a metal detector to alarm before sending it into compactor,it is to protect the blades and screw/barrel.
The belt conveyor is with current linkage set with compactor, if the compactor is overload,the belt stop, while the current is normal,the belt working.
2. Compactor
Here the compactor machine is with crushing and compact function,with moving/fixed blades design inside of barrel, the material will fully stir and friction immedietely. The moving baldes and friction creat heat to dry materials and make material compaction. It is easy to feeding with bigger capacity. You can easily to inspect the working inside of compactor by the inspection window.
For washed PE film with moisture, our new degassing dusting collection system is so big improvement of final granules.
New technology of degassing in the cutter compactor takes place preheating and predrying the plastic materials.
The optimum screw design(turn to the material to be processed) enables the reverse degassing to be true in the cutter compactor,it is a help of degassing zone of extruder.
In all,the compactor is to crush,dry,compact the film in one step.
3. Extruder
The main extruder is designed with a vacuum system, if your material sometimes is a little wet or with some useless elements. The vacuum can absord the impurities to improve the quality of granules.
At the end of the extruder,we put a pressure sensor to alarm the remind operator to change the net.
4. Horizontal cutting system
Here is for die face cutting system, the granules will cutted and fall into water in short time. The thickness of granules is depend on the speed of motor(Inverter control)
Our RCDJ Series pelletizing machine can process:
(1) PE,PP materials,such as films,bags,flakes,film rollers,stretch film,shrink film,packing film,multi-layer film,T-shirt bag cut-offs.
(2) Foamed PE,EPS,EPE,XPS: rolls,bags,sheet,food container,fruit net,cover
(3) Textile:PP fiber,raffia,silk,yarn,woven bags,non-woven fabric,jumbo bag
(4) Plastic Granulating Line for PP raffia/woven sack/BOPP film/CPP film recycling,PE+PA laminated film.
(5) Meanwhile,it can be pelletizing both soft film and rigid flakes in one machine.The point is add a controlling valve in the feeding part.
ABOUT RETECH:
RETECH is a manufacturer of PLASTIC GRANULATOR MACHINE and PLASTIC WASHING LINE with strong technical force.
With a simple operation, good quality, reasonable prices and experienced designs, our plastic recycling machine are extensively used in the field of waste plastic recycling field
15years experience in this field. 15 years focus on produce the plastic recycling machine and plastic pelletizing line and plastic washing line.Such as plastic bottle recycling machine,PP raffia recycling machine,plastic film recycling machine,chemical fiber/nylon fiber pelletizing machine,PP PE film granulator plastic recycling machine plant,PET bottle flakes pelletizing line,Crusher,Shredder,Agglomerator and so on.
Our machines are specialized in processing PP PE HDPE LDPE BOPP PET PA PVC ABS PS EVA and so on.
We are waiting for your further concerns.
