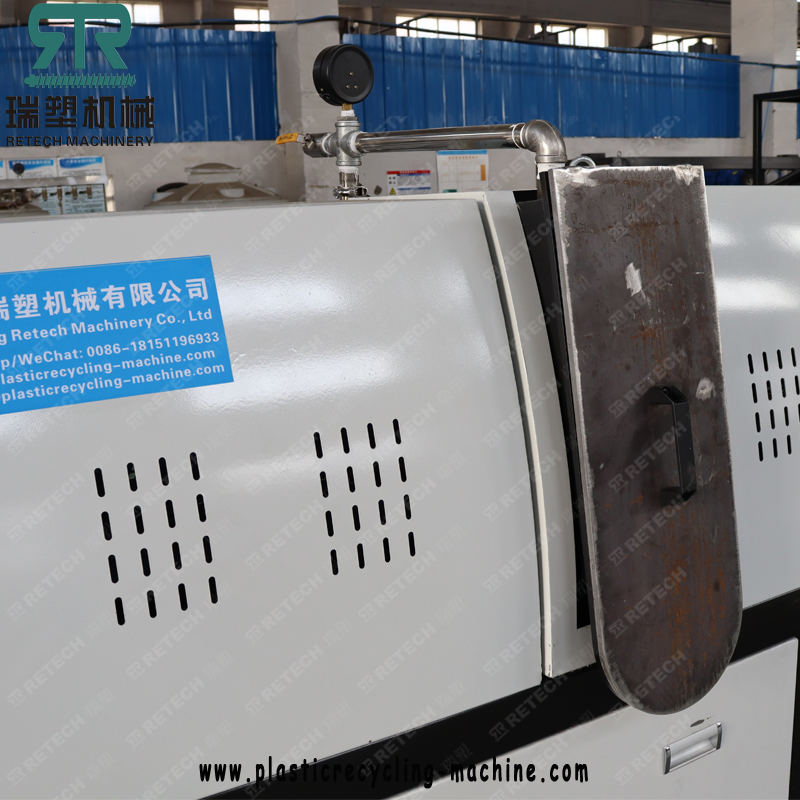

Plastic HDPE PP PS Rigid Flakes Recycling Pelletizing Machine
Product information:
This HDPE flakes pelletizing line is specially design to deal with the hard plastic materials like HDPE flakes, PP flakes,PS EPS XPS foam,etc. The clean flakes usually washed by our washing plant,other plastic tube or bucket crushed or shredded into small flakes. It is very easy to feeding by our normal feeder. 2 degassing vent will absorb the useless cells and printing ink, the final flakes will be more clean and stable.This plastic rigid flakes pelletizing production line is with high automatically operation and labor savings. With advanced design concept and constantly advises from customers, we can customized to meet all your specially demands.
Equipment list:
NO. | Name | Qty |
1 | Ø200/25 Primary extruder | 1 |
2 | Ø200/12 Sub extruder | 1 |
3 | Hydraulic filter exchanger | 2 |
4 | Water cooling flume | 1 |
5 | Vertical dewatering machine | 1 |
6 | Vibrating screen | 1 |
7 | Blower conveying system | 1 |
8 | Silo | 1 |
9 | Electric panel | 1 |
Models of plastic granulating machine:
Model | Screw Diameter(mm) | Main Motor Power(kw) | Side Force Feeder Motor Power(kw) | Capacity(kg/h) |
SJ100/30 | Φ100 | 55-75 | 5.5 | 150-200 |
SJ120/30 | Φ120 | 75-90 | 7.5-11 | 200-350 |
SJ130/30 | Φ130 | 90-110 | 11 | 300-400 |
SJ150/28 | Φ150 | 132-160 | 15 | 350-500 |
SJ160/28 | Φ160 | 160-185 | 15 | 450-550 |
SJ180/25 | Φ180 | 185-200 | 18.5 | 600-800 |
SJ200/25 | Φ200 | 200-250 | 22 | 800-1000 |
