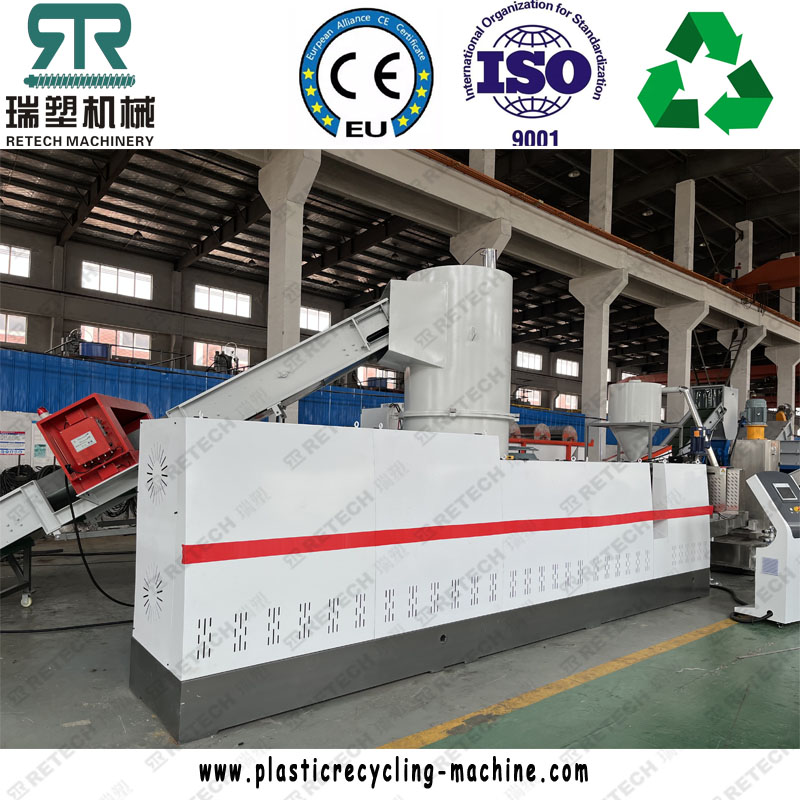

Plastic PE Film Shopping Bag Recycling Granulating Pelletizing Line
The PP PE plastic film pelletizing machine technology description:
This PP PE film/rigid pelletizing line is specially design to deal with the materials like LDPE,LLDPE,HDPE film,etc.
With compactor unit to agglomeration the material firstly.Compacting will helpful to reduce the moisture and good for feeding into extruder.
2 vacuum degassing vent will absorb the dirt and printing ink.
The final flakes will be more clean and stable.
Side feeder is working for HDPE PP rigid flakes for another feeding way.
This production line is with high automatically operation and labor savings quality.
With advanced design concept and constantly advises from customers, we can customized to meet all your specially demands.
The new plastic film recycling machine technology has below features:
(1) Cut/compact/extrusion/granulation in one pelletizing recycling machine
(2) Temperature: 180°C -220 °C
(3) Granules cutting way: water ring cutting/strand cutting(optional)
(4) Capacity:200kg/h-800kg/h
(5) The granules could put into blowing directly
The plastic film recycling machine list:
No. | Name | Quantity |
1 | Belt conveyor with metal detector | 1 |
2 | Compactor | 1 |
3 | RCSJ140/33 main extruder | 1 |
4 | RCSJ150/12 baby extruder | 1 |
5 | Hydrualic screen exchanger | 2 |
6 | Die face cutting system | 1 |
7 | Water flume | 1 |
8 | Dewatering machine | 1 |
9 | Vibrating screen | 1 |
10 | Blower conveying system | 1 |

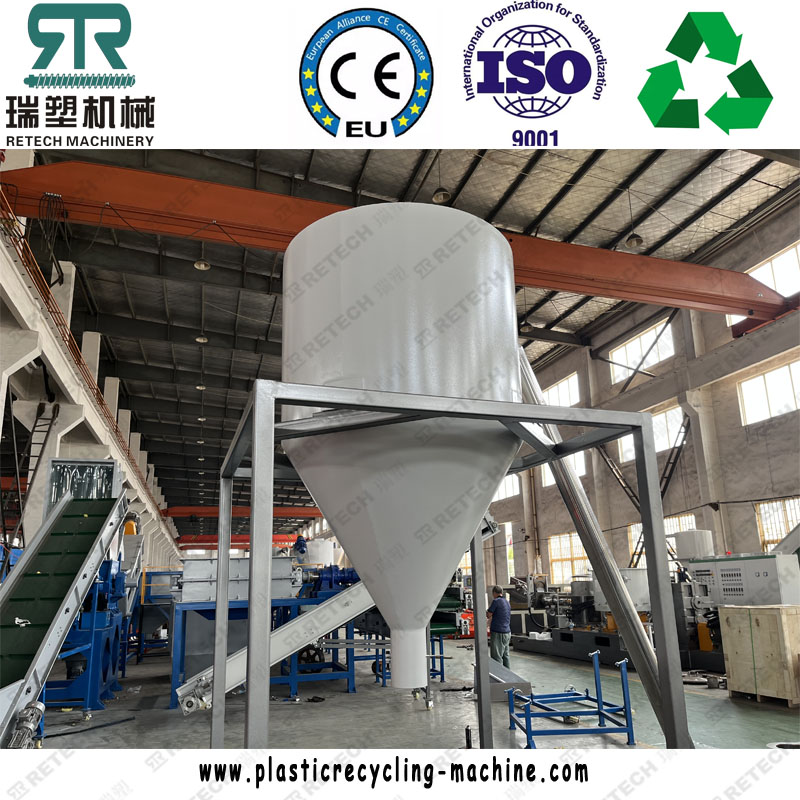

11 | Storage hopper | 1 |
12 | Electric panel | 1 |
