PE LDPE Agricultural Film Crushing Washing Squeezer Drying Recycling Machine
Models of our PP PE film washing line:
Model | Capacity | Labor | Water(t/h) | Electricity(kw/h) |
RS-300 | 300kg/h | 1-2 | 4-6 | 90 |
RS-500 | 500kg/h | 1-2 | 6-8 | 150 |
RS-1000 | 1000kg/h | 2-3 | 10-12 | 300 |
RS-2000 | 2000kg/h | 2-3 | 15-20 | 420 |

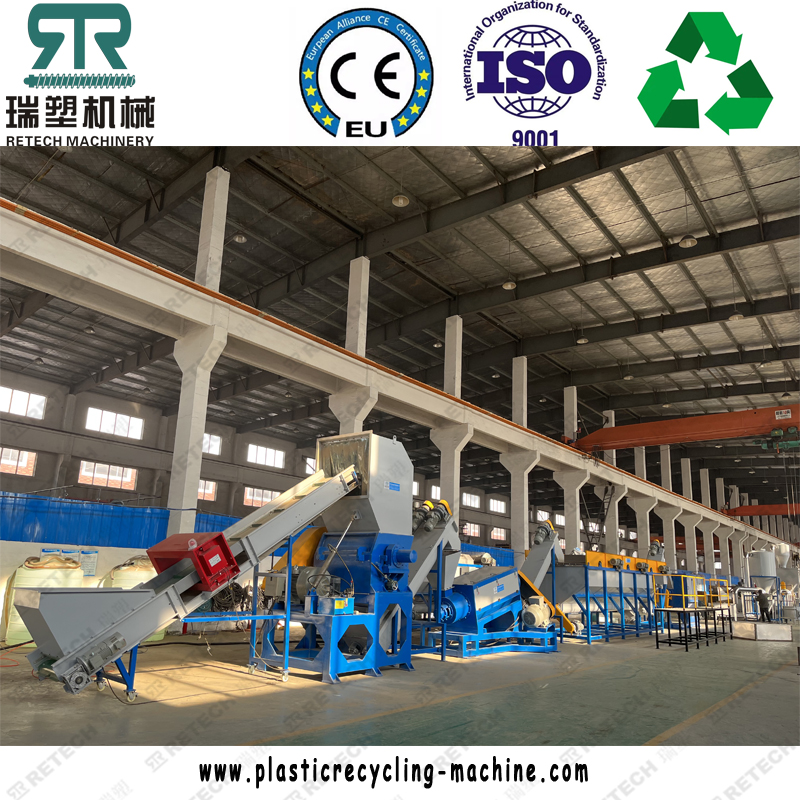

Layout of 1500kg/hr LDPE Film Washing Plant:
Equipment List to 1500kg/hr PE Film Washing Line:
No | Equipment Name | Quantity |
1 | Belt conveyor with metal detector | one |
2 | Wet Crusher-1000 | one |
3 | Screw conveyor | one |
6 | Sinking Floating Washer | one |
7 | Screw conveyor | one |
8 | Paper-label Remover System | one |
9 | Screw conveyor | one |
10 | Sinking Floating Washer | one |
11 | Screw Conveyor | one |
12 | Squeezer Machine | one |
13 | Pipe Drying System | one |
14 | Storage Hopper | one |
15 | Electrics | one |
PE Film Families:
>PE Greenhouse film recycling line : 80÷150 mµ thick, low contamination but significant degradation by atmospheric agents and by the agricultural cycle;
>Mulching film recycling machine: 8÷20 mµ thick, high quality, low degradation, but very thin with high degree of contamination;
>Stretch wrap film recycling line : 12÷25 mµ thick, high quality, but very thin with high degree of contamination;
>Banana Film recycling plant : 10÷15 mµ thick, high quality, but very thin with medium/high contamination;
>Non woven PP film recycling line: 10÷15 mµ thick, thin material with significant degree of contamination, difficult to wash and dry;
>Irrigation pipes recycling line: 200 mµ thick, internal contamination present in the material;
>Tunnel film recycling machine: 30÷40 mµ thick, high quality, low degradation, but high degree of contamination.
Water consumption and water treatment system:
Water processing by our PE film washing line, it is dirty. Retech provide waste water treatment machine to recycle dirty water to be used and back to washing line.
