Plastic Swim-Sinking Separation Floating Washer Tank(Floating-Sink) for plastic recycling washing line
Function:
(1) Washing:
Plastic swim washing tank is used to immersing and rinsing the flakes and separating out sinking dirties, including the paper sticker.

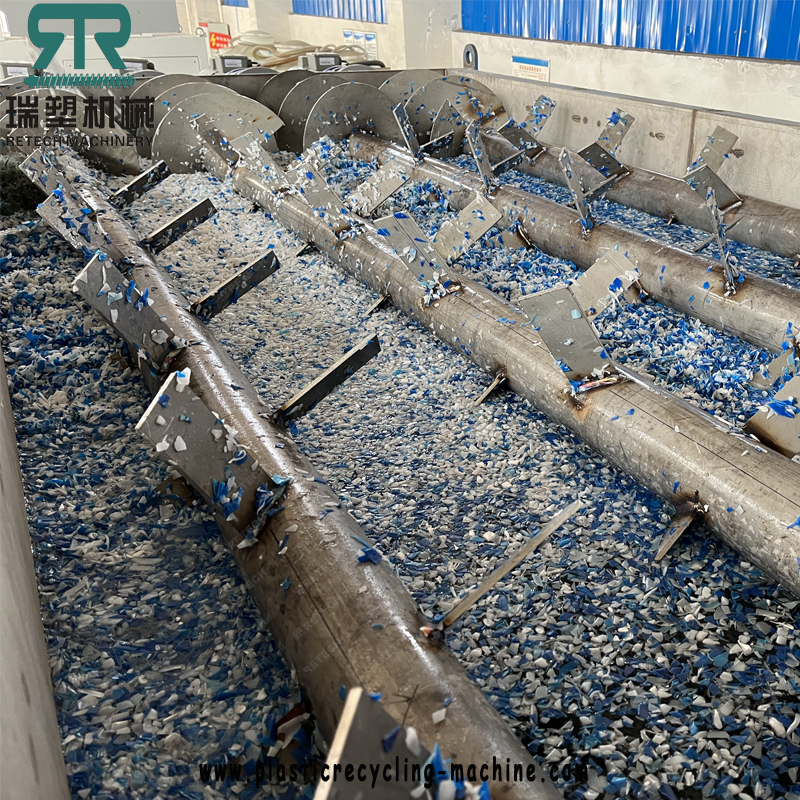

While washing PP PE floating plastics,it is swim in light weight,dirts fall down and push away by a bottom screw. Washed plastic pushed by rollers from water level.
While processing PET/PVC sinking plastics,it is all washing in bottom of water.
(2) Separation:
Swim-sink tanks use the different specific weights of various kinds of plastics to separate out.Typically application are teh separation of PET or PVC (sink) from polyolefines,such as PE or PP(both swim floating).
The light fraction is transported along the surface of the water by means of paddle drums to a discharge screw for next processing.
The heavy fractions are discharge by bottom screw and extractd by a side screw loader.
Application:
PP woven bag/PE film/HDPE bottle/PET bottle washing floating tank,we could customized the shape/dimension of floating tank according to your requirements.
Technical data:
Model | Length-mm | Width | Capacity |
RS4500 | 4500mm | 1320mm | 300kg/h |
RS6000 | 6000mm | 1600mm | 500kg/h |
RS8000 | 8000mm | 1900mm | 1000kg/h |
RS11000 | 11000mm | 2000mm | 2000kg/h |
Features:
We can customized the dimensions of the plastic floating sinking tank
Putting on a chain conveyor while washing LDPE/LLDPE film to improve capacity
A inclined conveyor shape design when processing PET bottle flakes
2 or 3 washing flow channels for longer stay in water design
