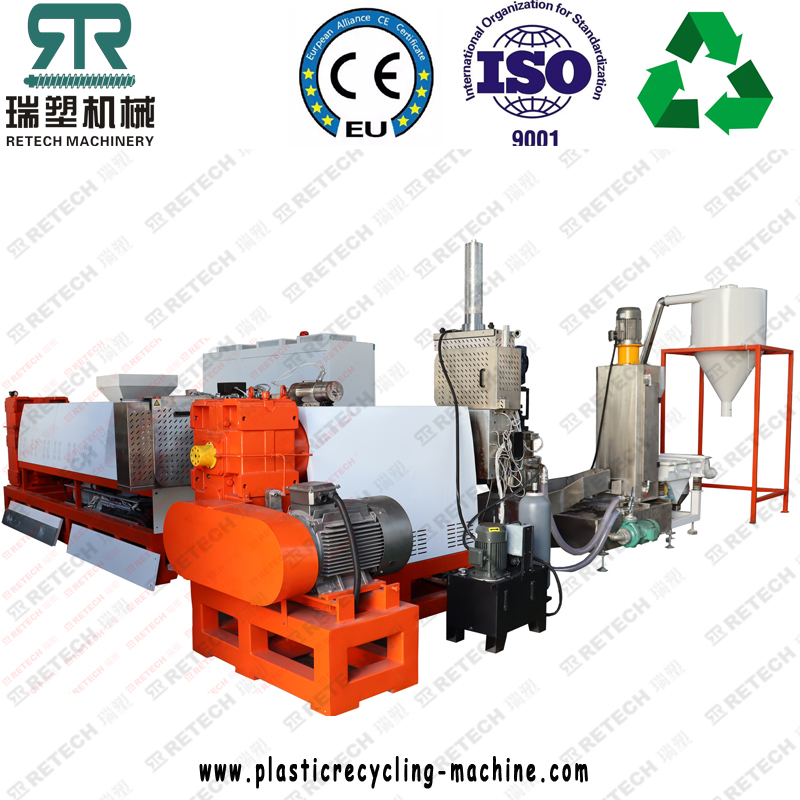

Screw Force Feeding PP PE Film/Rigid Flakes Two Stage Die Face Granulator
1. Introduction and Application(Side force feeder granulator)
1 Applicable plastic materials: PE, HDPE, LDPE, PP, etc.
2 Material shapes: rigid flakes, agglomerated film, soft films.
3 Note: depending on different material properties, various downstream equipments are needed.
4 Better degassing and better quality with two stages.
2.Features:
1 Remove the volatile material such as air, water or chemical material by strong vacuum degassing system
2 Twice filtering, guarantee the purity of the pellets
3 Complete auxiliary equipments, guarantee the machine running for 24 hours without stopping.
4 The moisture of pellets: below 1%
3.Side Force Feeding Type Pelletizing Line:
Model | Screw Diameter(mm) | Main Motor Power(kw) | Side Force Feeder Motor Power(kw) | Capacity(kg/h) |
TCSJ100/30 | Φ100 | 55-75 | 5.5 | 150-200 |
TCSJ120/30 | Φ120 | 75-90 | 7.5-11 | 200-350 |
TCSJ130/30 | Φ130 | 90-110 | 11 | 300-400 |
TCSJ150/28 | Φ150 | 132-160 | 15 | 350-500 |
TCSJ160/28 | Φ160 | 160-185 | 15 | 450-550 |
TCSJ180/25 | Φ180 | 185-200 | 18.5 | 600-800 |
TCSJ200/25 | Φ200 | 200-250 | 22 | 800-1000 |
Feeding type for PE /PP pelletizing machine:
1. Hopper feeder (suitable for agglomerated material, hard scrap material) recycling line
2. With a separate agglomerator (suitable for film, bag etc) granulating machine
3. Compactor (suitable for bundled big size film bag) pelletizing machine
4. Reel feeder (suitable for film roller) cutter recycling machine
5. Side force feeder(suitable for film scraps, hard material scraps) pelletizing line
6. Vertical force feeder (suitable for film scrap and hard material scrap) recycling machine
Pelletizing cutting ways for plastic pelletizing machine:
1. Water ring cutting pelletiznig line
2. Noodle string strand cutting granulating line
Extruder Type:
1. Single stage PP PE film pelletizing line
2. Double (two)stages PP PE flakes granulating machine
