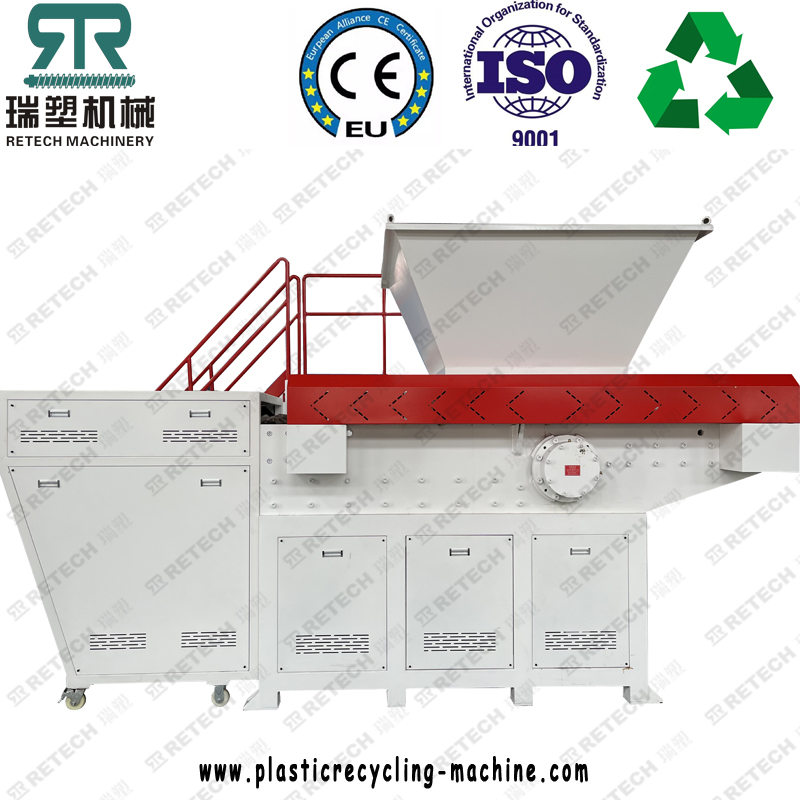

Waste Plastic Recycling Single Shaft Shredder

Application:
The single shaft shredder is mainly used for big block objects, such as die head material, thick wall pipes, and also can be used for film roller, paper and fibers, etc….
Main characters:
1. The blades and blades rack of single shaft shredder can be demounted on the rotating shaft. It is easy to clear, change and maintenance.
2. The rotating blades of single shaft shredder are fixed on the shaft by V shape. It is good for shredding the material evenly which can make the energy consumption is low and noise is very small.
3. Every rotating blade of single shaft shredder has 4 cutting edges, after one cutting edge is worn out, it can be changed to other ones. And also with same design to the fixed blade, which has two cutting edges, also when one cutting edge is worn out, it can be change to the other one.

  • RSS series Shredder
  • Retech
  • HS code: 8477800000
Delivery days:
Electric Grid :
Price :
Quantity:

Single Shaft Shredder


Application:


The single shaft shredder is mainly used for big block objects, such as die head material, thick wall pipes, and also can be used for film roller, paper and fibers, etc….

Main characters:


1. The blades and blades rack of single shaft shredder can be demounted on the rotating shaft. It is easy to clear, change and maintenance.
2. The rotating blades of single shaft shredder are fixed on the shaft by V shape. It is good for shredding the material evenly which can make the energy consumption is low and noise is very small.
3. Every rotating blade of single shaft shredder has 4 cutting edges, after one cutting edge is worn out, it can be changed to other ones. And also with same design to the fixed blade, which has two cutting edges, also when one cutting edge is worn out, it can be change to the other one.
4. The shaft of single shaft shredder is driven by motor through the gear box, it runs stable, low noise, high torque.
5. The material is pushed by hydraulic pusher of single shaft shredder automatically. It works strong and stable.
6. The electric system of single shaft shredder is controlled by PLC, which make the shaft can rotate in positive direction, reversal direction and stop, then to protect the machines running safely.

Model:

Model

Main power

Pushing power

Qty rotating blades

Qty
fixed blades

Shaft rotating diameter

Capacity

(kg)

Size
(mm)

Weight

(kg)

RSS600

22kw

1.5kw

28

2

φ252mm

200~400

1800x1200x1800

2000

RSS800

37kw

2.2kw

38

2

φ400mm

500~800

2700x1700x2000

3200

RSS1000

45kw

2.2kw

48

3

φ400mm

700~1000

2800x2000x2300

4300

RSS1200

55kw

3.7kw

78

3

φ430mm

1000~1500

2950x2200x2500

5500

RSS1500

90kw

3.7kw

102

4

φ480mm

1300~1800

3100x2550x2700

7800

RSS2000

55kw*2

5.5kw

177

4

φ480mm

1800~2500

3300x3050x2800

9500

single screw shredder waste plastic recycling mahines

single shaft shredder plastic recycling shredder

shredding shaft of single shaft shredder for plastic recycling scrap
