RDS series Shredder
Retech
HS code: 8477800000
| Color: | |
|---|---|
| Delivery days: | |
| Electric Grid : | |
| Price : | |
| Quantity: | |

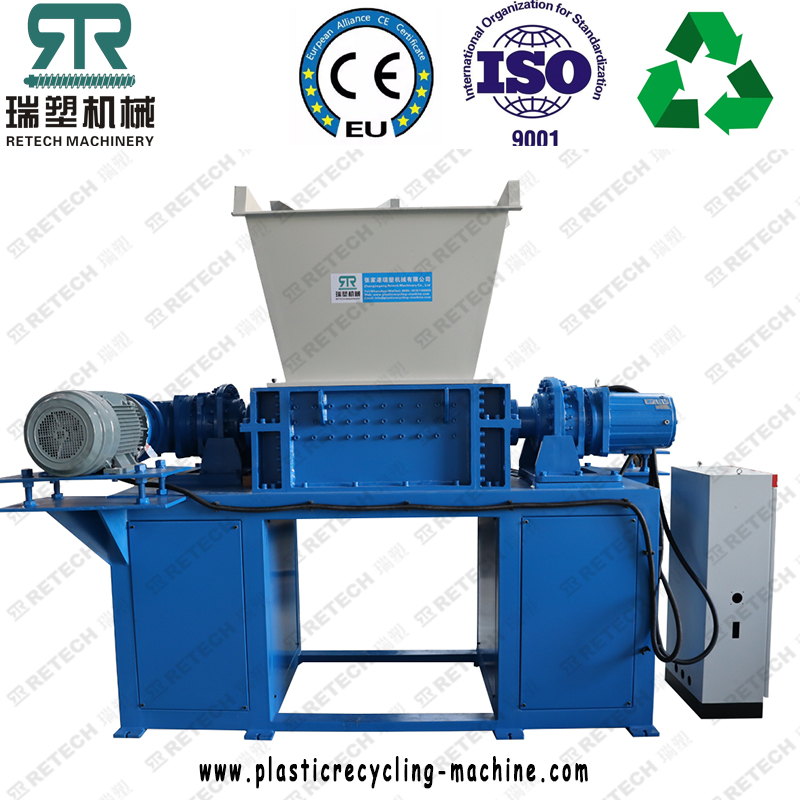

Double Shaft Shredder
Double shaft shredder application:
The double shaft shredder is mainly used for hard material, such as barrel, basket, panel material, wood, car tires and even big bale film etc…
Double shaft shredder characters:
1. The shredding cabinet of double shaft shredder is made of special thickness steel panel with precision machining. It is fixed by big angle hexagonal bolts and with strong inlet hopper. All these is to ensure the big and heavy material can be put directly into the shredding cabinets
2. The rotating blades of double shaft shredder are with special designed to the thickness, shape and arranging series which ensure it is strong cutting ability, sharpening cutting edge and then make it working high efficiently.
3. Low speed running, low noise and less powder flying of double shaft shredder.
4. The blades of double shaft shredder are made of special alloy steel, strong and long time working.
5. The electric system of double shaft shredder is controlled by PLC, which make the shaft can rotate in positive direction, reversal direction and stop, then to protect the machines running safely.
Double shaft shredder models:
Model | Motor power （KW） | Qty of rotating blades | Size of shredding chamber | Capacity （kg/h） |
RDS600 | 15 | 12 | 600*550 mm | 300~800 |
RDS800 | 37 | 16 | 800*600 mm | 500~1500 |
RDS1000 | 30×2 | 20 | 1000*700 mm | 1000~2000 |
RDS1200 | 37×2 | 24 | 1200*800 mm | 1500~2500 |
RDS1600 | 45kw×2 | 22 | 1600*900 mm | 2000~3000 |
Double shaft shredder with pressor:
Double shaft shredder main shaft with blades:
