RCSJ Series PP PE film recycling pelletizing machine
RETECH
8477201000
| Quantity: | |
|---|---|

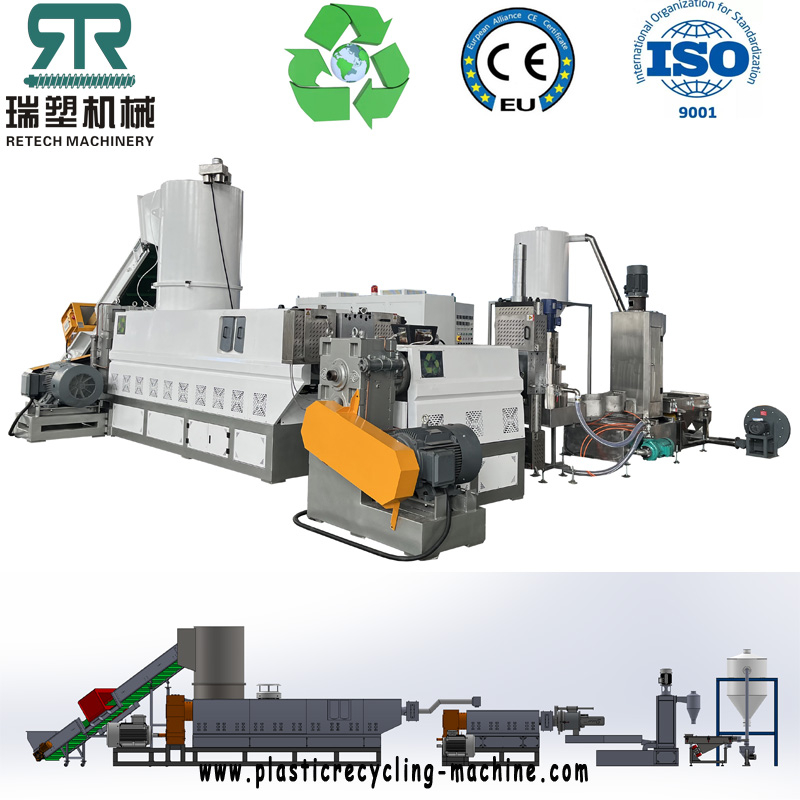

HDPE Bag LDPE Film Plastic Compactor Double Stage Pelletizing Machine
RCSJ Series HDPE Bag LDPE Film Plastic Compactor Double Stage Pelletizing Machine. This model of film recycling line combines functions of compacting,plasticization,pelletizing into one step,applied in the plastics recycling and granulation. It is a reliable and efficient solution for PE film,PP woven bag circle reprocessing.
RCDJ Single Stage Pelletizing Line:
| Model | Screw Diameter | L/D | PE(kg/hr) | PP(kg/hr) |
| RCDJ85 | 85mm | 33-1 | 160-220kg/hr | 120-200kg/hr |
| RCDJ100 | 100mm | 33-1 | 260-320kg/hr | 220-280kg/hr |
| RCDJ130 | 130mm | 33-1 | 450-550kg/hr | 380-450kg/hr |
| RCDJ160 | 160mm | 30-1 | 650-800kg/hr | 500-600kg/hr |
| RCDJ180 | 180mm | 25-1 | 900-1000kg/hr | 650-800kg/hr |
RCSH Double Stage Pelletizing Line:
| Model | Screw Diameter | L/D | PE(kg/hr) | PP(kg/hr) |
| RCSJ85/100 | 85mm/100mm | 33-1 | 160-220kg/hr | 120-200kg/hr |
| RCSJ100/120 | 100mm/120mm | 33-1 | 260-320kg/hr | 220-280kg/hr |
| RCSJ130/150 | 130mm/150mm | 33-1 | 450-550kg/hr | 380-450kg/hr |
| RCSJ160/180 | 160mm/180mm | 30-1 | 650-800kg/hr | 500-600kg/hr |
| RCSJ180/200 | 180mm/200mm | 25-1 | 900-1000kg/hr | 650-800kg/hr |
Features of our RCSJ PE Film Granulation Line:
(1) Equipped with metal detector before compactor. Linkage setting with temperature and current.
(2) Reverse rotation technology to improve capacity of compactor feeding.
(3) Laser filter optional for labor saving on plastic pelletizing machine.
(4) Single stage or double stage granulation system.
(5) World famous brand electric elements apply on our pelletizing line for long-life stable working.
