HDPE LDPE Film Bag Compacting Degassing Extruder Die Face Cut Pelletizing Line

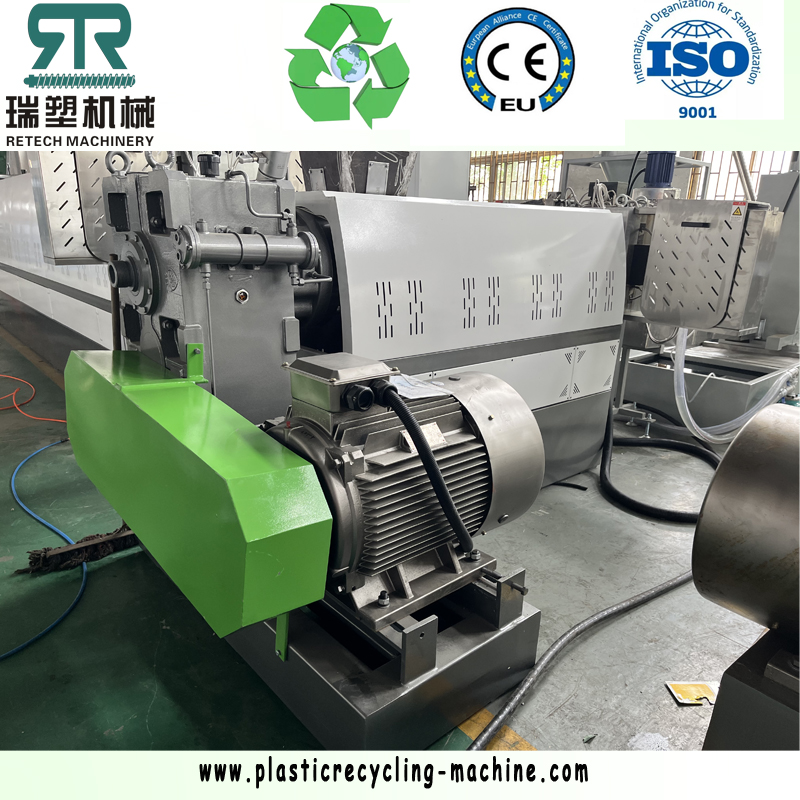

Plastic die face cut granulating line from Retech Machinery is designed for recycling plastic PP, PE, HDPE, LDPE, LLDPE, PA66, PC, PET, OPP, BOPET, ABS and etc. They are widely used in making bags, film rollers, stretch film, shrink film, muti-layer film, T-shirt bag cut-offs; Foamed PE, sheet, food container, fruit net, cover, fiber, raffia, silk, yarn, woven bag, jumbo bag. Cutter compactor recycling pelletizing machine can produce more than 10 kinds of plastic material.
  • RCSJ Series PP PE film recycling pelletizing machine

  • RETECH

  • 8477800000

Plastic:
Moisture:
Production Capacity:
Availability:
Quantity:

HDPE LDPE Film Bag Compacting Degassing Extruder Die Face Cut Pelletizing Line

Plastic 3 in 1 Compactor Recycling LDPE HDPE Film Pelletizing Plant

Cutter compactor plastic recycling pelletizing line from Retech Machinery is designed for recycling plastic PP, PE, HDPE, LDPE, LLDPE, PA66, PC, PET, OPP, BOPET, ABS and etc. It is widely used in making bags, film rollers, stretch film, shrink film, muti-layer film, T-shirt bag cut-offs; foamed PE, sheet, food container, fruit net, cover, fiber, raffia, silk, yarn, woven bag, jumbo bag. Our cutter compactor recycling pelletizing machine can produce more than 10 kinds of plastic material.


Applications:

Granules

Models/Technical Parameters:

Models RCSJ85/100 RCSJ100/120 RCSJ130/150 RCSJ160/180 RCSJ180/200
Screw diameter 85mm 100mm 130mm 160mm 180mm
L/D 33:1 33:1 33:1 30:1 28:1
Compactor 37kw 55kw 75kw 90kw 132kw
Extruder
55kw 90kw 132kw 185kw 250kw
Output(kg/hr) 200kg/hr 320kg/hr 500kg/hr 750kg/hr 1000kg/hr

(Note: optional for single stage or double stage,optional for self-cleaning filter or plate filter)


1. Belt Conveyor

Feeding speed of conveyor belt or roll hauling off is fully automatic based on how full the compactor's room is. Metal detector can be combined with belt conveyor, and can interlock with contrl system, to warn and stop the system, in case that metal is found in feeding.

Belt conveyor with metal detector

2.Compactor / Agglomerator

The rotatory blades in compactor will cut up the feeding scraps. Frictional heating which caused by high speed rotation blades will heat and shrinking agglomerating materials. Optimal designed guide structure compacts the material and directs it into extruder screw. Crushes, dries and compacts the material which enables a fast and stable feeding from the compactor directly into the extruder.

Plastic 3 in 1 Compactor Recycling LDPE HDPE Film Pelletizing Line

3.Extruder
Single screw extruder applied to melting the material. The plastic scraps will be well melted, plasticized in a 33D processing section. With double-zone vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency, especially suitable to heavy printed film and material with water content.

PP PE film compactor pelletizing line

4.Water-ring&Die-face cutting system:

Water-ring or die-face/Strand cutting ways are optionally adopted. In water-ring die-face cutting system, the rotary cutting blades will be pneumatically fit completely and closely to the die-face surface to ensure efficient cutting. Rotary speed of the blades is automatically adjusted by module system according to melt pressure at the die face.

Water ring Die face cutting system
