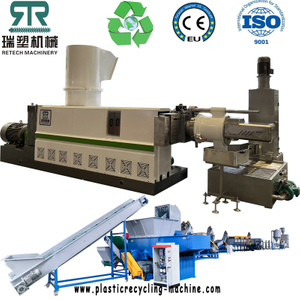

RT series PP woven bag pelletizing machine
RETECH
8477800000
| Plastic: | |
|---|---|
| Screw diameter: | |
| Cutting way: | |
| Quantity: | |
PP Woven Bag Ton Bag Shredding Compactor Recycling Pelletizing Line
PP Film / Woven Bag Pelletizing Line Description:
PP woven bag pelletizing line has the characteristics of good heat resistance, low moisture absorption, good chemical resistance, good weather resistance, high dielectric strength, good electrical properties, high dielectric strength and dimensional stability.
The plastic PP woven bag pelletizing line is used to process PP film, BOPP printing film, packaging film, PP woven bag, PP jumbo bag, PP raffia bag, PP ton bags, etc.
PP Woven Bag Pelletizing Line Applications:
PP Woven Bag BOPP Film Pelletizing Line Features:
BOPP film→belt conveyor→compactor→mother extruder →hydraulic screen changer →baby extruder→hydraulic screen changer →pelletizing system →air transmission →silo storage
Feed film on the Belt conveyor machine and go into Compactor for cutting, heating, compacting and mixing, then enter the film granulating machine for extruding.
Feed regrind material through the Spiral charger and Feeder on the extruder.
Instruction: the film and regrind material can be recycled separately or together, depending on customers’ different needs.
Models of PP non woven fabric granulating line:
| Model | RCSJ85 | RCSJ100 | RCSJ130 | RCSJ160 | RCSJ180 |
| Power | 75kw | 90kw | 132kw | 185kw | 250kw |
| Screw diameter | 85mm | 100mm | 130mm | 160mm | 180mm |
| L/D | 33:1 | 33:1 | 33:1 | 30:1 | 28:1 |
| Agglomerator | 37kw | 55kw | 75kw | 90kw | 132kw |
| Output(kg/h) | 160kg/hr | 280kg/hr | 450kg/hr | 600kg/hr | 800kg/hr |
